Standard console server serial ports

The Opengear connectors and adapters tabulated below work with standard UTP Cat 5 cable. You'll find more cable adapter information here as to which adapter is needed to connect to various types of equipment. Also the numbers marked with an * below are the part numbers of the Avocent/Equinox functional equivalents.

319000	DB9F to RJ45 straight	IM/CM/SD4000 LOCAL Console Port to IP Power and other serial device
319001	DB9F to RJ45 crossover	DCE Adapter - IM/CMSD000 to X86 and other	210120 *
319002	DB25M to RJ45 straight	DTE Adapter - IM/CM/SD4000	210124 *
319003	DB25M to RJ45 crossover	DCE Adapter - IM/CM/SD4000 to Sun and other	210123 *
319004	DB9M to RJ45 straight	DTE Adapter - IM/CM/SD4000 to Netscreen and Dell	210122 *
319005	DB25F to RJ45 crossover	DCE Adapter - IM/CM/SD4000 to Cisco 7200 AUX	210121 *
440016	5ft Cat5 RJ-45 to RJ-45 cables	Extension cables
449016	RJ-45 plug to RJ-45 jack	Adapter for Cisco console (and Netscreen with reversing cable)	210127 *
449017	RJ-45 plug to RJ-45 jack	Adapter for Rackable Systems console

Local/Console port connection

To connect to the LOCAL console ports on IM/IMG/CM/SD4000 using a computer or terminal device use the 319001 or 319003 adaptors with standard UTP Cat 5 cable. To connect the LOCAL console ports to modems (for Out of Band access) use the 319004 adaptor with standard UTP Cat 5 cable. Each IM/IMG/CM/SD4000 gateway is supplied with UTP Cat 5 cables.

Standard RJ45 pinout

RS232 pinout standards exist for both DB9 and DB25 connectors; however there's no pinout standard for RS232 using RJ45 connectors so custom adaptors and cables are often required to interconnect with the serially managed servers, router, switches or PDUs. Suppliers of console servers have also adopted a variety of pinout configurations as can be seen from Zonker's Serial Signals Page on the conserver site.

Opengear's console server products have the same RJ45 pinout as the Avocent /Equinox brand console server. So if you need to connect to a particular serial device and an Opengear adapter is not available off-the-shelf, you should be able to use an adaptor made to work with one of these competitor's products.

PIN SIGNAL DEFINITION DIRECTION 1 RTS Request To Send Output 2 DSR Data Set Ready Input 3 DCD Data Carrier Detect Input 4 RXD Receive Data Input 5 TXD Transmit DataCTS Output 6 GND Signal Ground NA 7 DTR Data Terminal Ready Output 8 CTS Clear To Send Input

On the SD4008 the pinout for the RJ45 connectors is software selectable on a per port basis to be either RS232 or RS422/485

PIN RS232 SIGNAL RS422/485 SIGNAL 1 RTS   2 DSR RX+ 3 DCD   4 RXD RX- 5 TXD TX+ 6 GND   7 DTR TX- 8 CTS

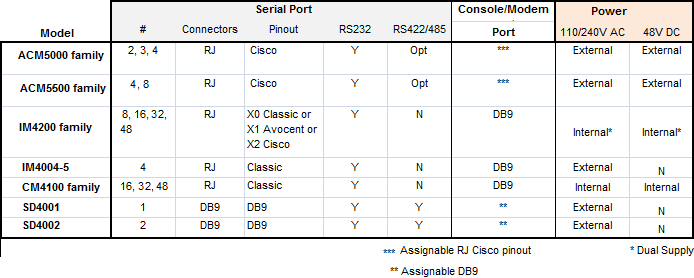

Some Opengear console server models are also available with Cisco or Cyclades RJ pinouts as detailed in Alternate RJ45 Pinouts

The RS-232 standard

RS232 pinout standards exist for both DB9 and DB25 connectors:

DB25 SIGNAL DB9 DEFINITION 1     Protective Ground 2 TXD 3 Transmitted Data 3 RXD 2 Received Data 4 RTS 7 Request To Send 5 CTS 8 Clear To Send 6 DSR 6 Data Set Ready 7 GND 5 Signal Ground 8 CD 1 Received Line Signal Detector 9     Reserved for data set testing 10     Reserved for data set testing 11     Unassigned 12 SCF   Secndry Rcvd Line Signl Detctr 13 SCB   Secondary Clear to Send 14 SBA   Secondary Transmitted Data 15 DB   Transmisn Signal Timng 16 SBB   Secondary Received Data 17 DD   Receiver Signal Element Timing 18     Unassigned 19 SCA   Secondary Request to Send 20 DTR 4 Data Terminal Ready 21 CG   Signal Quality Detector 22   9 Ring Indicator 23 CH/CI   Data Signal Rate Selector 24 DA   Transmit Signal Element Timing 25     Unassigned

  Location of Pin 1

	FEMALE	MALE
25 pin DB25
9 pin DB9
8 pin RJ45
