Auto configuring SDTConnector for console server and connected device access
Each Opengear console server maintains configuration details of the connected hosts and serial ports; the TCP ports and services enabled; alarm triggers and response; the users and their access privileges and more. The SDTConnector needs to be configured with these details for each console server it is to access.
This can be manually (refer faq264) or you can select Retrieve Hosts and the full configuration will be auto-uploaded into the SDTConnector. This will:
- manually configure SDTConnector access to the gateway itself (set up as Local Services)
- set up access to the enabled services to serial port connected devices on the gateway (e.g. Telnet access to the device on serial port 1)

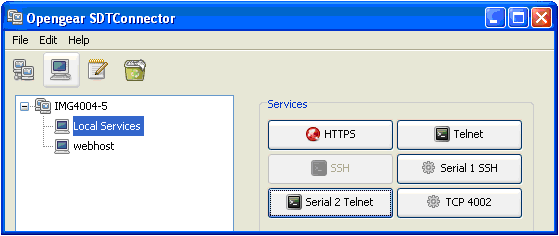

- configure access to network connected hosts that the user is authorized to access (e.g. webhost has been added below) and set up (for each of these hosts) the services (e.g. HTTPS, IPMI2.0) and the related IP ports being redirected
|
