Configuring the APN (Access Point Name) setting for your carrier
APN's are used by 3G GSM cellular data networks in establishing packet data connections. The APN determines how the 3G carrier network passes IP traffic to the destination network (i.e. what IP addresses are assigned to the console server, what security methods are used etc).
You will be provided information by your wireless carrier for configuring the 3G GSM connection e.g.
- APN (Access Point Name)
- Pin Code (optional PIN code which may be required to unlock the SIM card)
- Phone Number (the sequence to dial to establish the connection, defaults to *99***1#)
- Username/ Password (optional)
- Dial string (optional AT commands)
To configure:

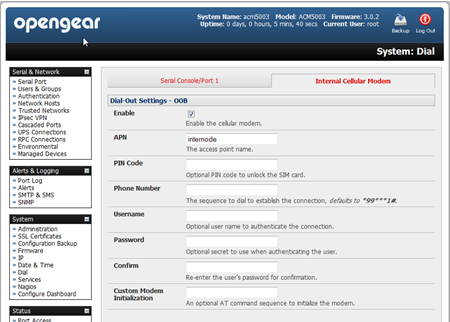

- Select Internal Cellular Modem panel on the System: Dial menu
- Check Enable for Dial-Out Settings -OOB
- Enter the carrier’s APN etc. Generally will only need to enter your provider’s APN and leave the other fields blank e.g.
- for AT&T (USA): APN= i2gold, Username: [blank] , Password: [blank]
- for T-Mobile (USA): APN= epc.tmobile.com, Username: [blank] , Password: [blank]
- for InterNode (Aust): APN= internode Username: [blank] , Password: [blank]
- for Telstra (Aust): APN= telstra.internet Username: [blank] , Password: [blank]
- for Rogers (Canada): APN= internet.com, Username=wapuser1, Password=wap
- If the SIM Card is configured with a PIN Code, you will be required to unlock the Card by entering the PIN Code.
Note: If the PIN Code is entered incorrectly three times, then the PUK Code will be required to unlock the Card.
- You may also wish to nominate a specific DNS, rather than use the one provided by your carrier (which will be autoconfigured when the PPP link is established). To do this, check Override returned DNS Servers in the Override DNS field and enter the IP of your nominated DNS servers
- Check Apply and a radio connection will be established with your cellular carrier
Major carrier APNs
The carrier specific settings for the major carriers in each country are listed below. For more detailed values and specific data plan details contact your mobile carrier.
Australia
| Operator |
GPRS APN |
Username |
Password |
Optional Settings |
| Internode |
internode |
[blank] |
[blank] |
DNS: 202.139.83.3, 192.65.91.129 |
| Optus |
internet |
[blank] |
[blank] |
DNS: 202.139.83.3, 192.65.91.129 |
| Telstra |
telstra.internet |
[blank] |
[blank] |
DNS: 139.130.4.4, 203.50.170.2 |
| Three |
3netaccess |
a |
a |
DNS: 202.124.68.130, 202.124.76.66 |
| Vodafone |
vfinternet.au |
[blank] |
[blank] |
DNS: 192.189.54.33, 210.80.58.3 |
To top
Austria
| Operator |
GPRS APN |
Username |
Password |
Optional Settings |
| OneNet |
web.one.at |
[user specific] |
[user specific] |
DNS: 194.24.128.100, 194.24.128.102 |
| Max Online |
gprsinternet |
GPRS |
[blank] |
DNS: 213.162.64.1, 213.162.64.2 |
| Max Online Business |
business.gprsinternet |
GPRS |
[blank] |
DNS: 213.162.64.1, 213.162.64.2 |
| Max Online Metro |
gprsmetro |
GPRS |
[blank] |
DNS: 213.162.64.1, 213.162.64.2 |
| Mobilkom A1 |
A1.net |
gprs@a1plus.at |
[blank] |
DNS: 194.48.124.200, 194.48.139.254 |
| tele.ring |
web |
web@telering.at |
web |
DNS: 212.95.31.11, 212.95.31.35 |
To top
Belgium
| Operator |
GPRS APN |
Username |
Password |
Optional Settings |
| Mobistar |
web.pro.be |
mobistar |
mobistar |
DNS: 212.65.63.10, 212.65.63.145 |
| Proximus |
internet.proximus.be |
[blank] |
[blank] |
DNS: 195.238.2.21, 195.238.2.22 |
| Orange / BASE |
orangeinternet |
[blank] |
[blank] |
- |
To top
Brasil
| Operator |
GPRS APN |
Username |
Password |
Optional Settings |
| Claro |
claro.com.br |
claro |
claro |
- |
| TIM |
tim.br |
tim |
tim |
- |
To top
Canada
| Operator |
GPRS APN |
Username |
Password |
Optional Settings |
| Rogers AT&T (Internet) |
internet.com |
wapuser1 |
wap |
|
| Rogers AT&T (VPN) |
vpn.com |
wapuser1 |
wap |
|
| Fido Microcell |
internet.fido.ca |
fido |
fido |
DNS: 204.92.15.211 |
To top
Chile
| Operator |
GPRS APN |
Username |
Password |
Optional Settings |
| Entel PCS |
imovil.entelpcs.cl |
entelpcs |
entelpcs |
- |
To top
China
| Operator |
GPRS APN |
Username |
Password |
Optional Settings |
| China Mobile |
cmnet |
[blank] |
[blank] |
- |
| China Unicom |
[none] |
[blank] |
[blank] |
DNS: 10.0.2.100 |
To top
Croatia
| Operator |
GPRS APN |
Username |
Password |
Optional Settings |
| VIPNET Start |
gprs0.vipnet.hr |
38591 |
38591 |
- |
| VIPNET Pro |
gprs5.vipnet.hr |
38591 |
38591 |
- |
To top
Czech Republic
| Operator |
GPRS APN |
Username |
Password |
Optional Settings |
| Cesky Mobil (contract) |
internet |
[blank] |
[blank] |
DNS: 212.67.64.2 |
| Cesky Mobil (prepaid) |
cinternet |
[blank] |
[blank] |
DNS: 212.67.64.2 |
| Eurotel (contract) |
internet |
[blank] |
[blank] |
DNS: 160.218.10.200, 160.218.43.200 |
| Eurotel Go |
gointernet |
[blank] |
[blank] |
DNS: 160.218.10.201, 194.228.2.1 |
| Oscar (contract) |
internet |
[blank] |
[blank] |
DNS: 217.77.161.130 , 217.77.161.131 |
| Oscar (Oskarta) |
ointernet |
[blank] |
[blank] |
DNS: 217.77.161.130, 217.77.161.131 |
| T-Mobile |
internet.t-mobile.cz |
[blank] |
[blank] |
DNS: 62.141.0.1, 62.141.0.2 |
To top
Denmark
| Operator |
GPRS APN |
Username |
Password |
Optional Settings |
| TDC |
internet |
[blank] |
[blank] |
DNS: 193.162.146.9, 193.162.153.31 |
| Sonofon |
[blank] |
[blank] |
[blank] |
DNS: 212.88.64.14, 212.88.64.15 |
| Orange DK |
web.orange.dk |
[blank] |
[blank] |
DNS: 212.97.206.131, 212.97.206.161 |
To top
Egypt
| Operator |
GPRS APN |
Username |
Password |
Optional Settings |
| Click Vodafone |
internet.vodafone.net |
internet |
internet |
- |
| MobiNil |
mobinilweb |
[blank] |
[blank] |
- |
To top
Estonia
| Operator |
GPRS APN |
Username |
Password |
Optional Settings |
| EMT |
internet.emt.ee |
[blank] |
[blank] |
DNS: 217.71.33.200, 217.71.32.20 |
| RLE |
internet |
[blank] |
[blank] |
- |
To top
Finland
| Operator |
GPRS APN |
Username |
Password |
Optional Settings |
| Dna |
internet |
[blank] |
[blank] |
DNS: 217.78.192.78, 217.78.192.22 |
| Radiolinja |
internet |
[blank] |
[blank] |
DNS: 213.161.33.200, 193.185.210.10 |
| Sonera |
internet |
[blank] |
[blank] |
DNS: 192.89.123.230, 192.89.123.231 |
To top
France
| Operator |
GPRS APN |
Username |
Password |
Optional Settings |
| Bouygues |
ebouygtel.com |
[blank] |
[blank] |
DNS: 62.201.119.99, 62.201.159.99 |
| Bouygues (B2Bouygtel) |
b2bouygtel.com |
[blank] |
[blank] |
DNS: 62.201.119.99 |
| SFR |
websfr |
[blank] |
[blank] |
DNS: 172.20.2.10, 194.6.128.4 |
| Orange Pro |
orange.fr |
orange |
orange |
DNS: 194.051.003.056, 194.051.003.076 |
| Orange Perso |
orange |
orange |
orange |
DNS: 194.051.003.056, 194.051.003.076 |
| Orange MIB |
orange-mib |
mportail |
mib |
Proxy: 172.16.2.8:8000 |
To top
Germany
| Operator |
GPRS APN |
Username |
Password |
Optional Settings |
| D2 Vodafone |
web.vodafone.de |
[any] |
[any] |
DNS: 139.7.30.125, 139.7.30.126 |
| E-Plus |
internet.eplus.de |
eplus |
gprs |
DNS: 212.023.97.2, 212.23.97.3 |
| D1 T-Mobile |
internet.t-d1.de |
td1 |
gprs |
DNS: 193.254.160.1 |
| Quam |
quam.de |
quam |
quam |
|
| O2 (Viag Interkom) |
internet |
[blank] |
[blank] |
DNS: 195.182.096.28, 195.182.96.61 |
To top
Greece
| Operator |
GPRS APN |
Username |
Password |
Optional Settings |
| Telestet |
gnet.b-online.gr |
your phone number |
24680 |
DNS: 212.152.79.19, 212.152.79.20 |
| Vodafone GR |
internet.vodafone.gr |
[blank] |
[blank] |
DNS: 213.249.17.10, 213.249.17.11 |
| Cosmote |
internet |
[blank] |
[blank] |
DNS: 195.167.065.194 |
To top
Hongkong
| Operator |
GPRS APN |
Username |
Password |
Optional Settings |
| CSL |
hkcsl or internet |
[blank] |
[blank] |
DNS: 202.84.255.1, 203.116.254.150 |
| New World |
internet |
[blank] |
[blank] |
- |
| Orange |
web.orangehk.com |
[blank] |
[blank] |
- |
| People |
internet |
[blank] |
[blank] |
- |
| SmarTone |
internet |
[blank] |
[blank] |
DNS: 202.140.96.51, 202.140.96.52 |
| Sunday |
internet |
[blank] |
[blank] |
- |
To top
Hungary
| Operator |
GPRS APN |
Username |
Password |
Optional Settings |
| Pannon (contract) |
net |
[blank] |
[blank] |
DNS: 193.225.155.254, 194.149.0.157 |
| Pannon (flat rate) |
netx |
[blank] |
[blank] |
DNS: 193.225.155.254, 194.149.0.157 |
| Vodafone (prepaid) |
vitamax.snet.internet.net
or
internet.vodafone.net |
[blank] |
[blank] |
DNS: 80.244.97.30, 80.244.96.1 |
| Vodafone (contract) |
standardnet.vodafone.hu
or
internet.vodafone.net |
[blank] |
[blank] |
DNS: 80.244.97.30, 80.244.96.1 |
| Westel (contract) |
internet |
wap
or
user specific* |
wap
or
user specific* |
DNS: 194.176.224.3, 194.176.224.1 |
To top
India
| Operator |
GPRS APN |
Username |
Password |
Optional Settings |
| AirTel |
airtelgprs.com |
[blank] |
[blank] |
- |
| BPL |
bplgprs.com |
bplmobile |
[blank] |
DNS: 202.169.145.34, 202.169.129.40 |
| Orange |
portalnmms |
[blank] |
[blank] |
DNS: 10.11.206.51, 10.11.206.50 |
To top
Indonesia
| Operator |
GPRS APN |
Username |
Password |
Optional Settings |
| IM3 |
www.indosat-m3.net |
gprs |
im3 |
- |
| Indosat |
satelindogprs.com |
[blank] |
[blank] |
DNS: 202.152.162.66, 202.152.162.67 |
To top
Ireland
| Operator |
GPRS APN |
Username |
Password |
Optional Settings |
| O2 (contract) |
open.internet |
gprs |
gprs |
DNS: 62.40.32.33, 62.40.32.34 |
| O2 (prepaid) |
pp.internet |
gprs |
gprs |
DNS: 62.40.32.33, 62.40.32.34 |
| Vodafone |
isp.vodafone.ie |
vodafone |
vodafone |
- |
To top
Israel
| Operator |
GPRS APN |
Username |
Password |
Optional Settings |
| Cellcom |
internetg |
[blank] |
[blank] |
- |
| MTC-Vodafone |
apn01 |
[blank] |
[blank] |
DNS: 10.10.10.30 |
| Orange |
internet |
[blank] |
[blank] |
- |
To top
Italy
| Operator |
GPRS APN |
Username |
Password |
Optional Settings |
| BLU Contratto |
INTERNET |
[blank] |
[blank] |
DNS: 212.17.192.49, 212.17.192.49 |
| BLU Prepagata |
PINTERNET |
[blank] |
[blank] |
DNS: 212.17.192.49, 212.17.192.49 |
| Vodafone Omnitel |
web.omnitel.it |
[blank] |
[blank] |
DNS: 194.185.97.134 |
| TIM |
uni.tim.it |
[blank] |
[blank] |
DNS: 213.230.155.94, 213.230.130.222 |
| Wind |
internet.wind |
[blank] |
[blank] |
DNS: 212.245.255.2 |
To top
Japan
| Operator |
GPRS APN |
Username |
Password |
Optional Settings |
| J-Phone (Vodafone) |
phone |
j@phone |
jphone |
|
To top
Lithuania
| Operator |
GPRS APN |
Username |
Password |
Optional Settings |
| Bite GSM |
banga |
[blank] |
[blank] |
DNS: 213.226.131.131, 193.219.32.13 |
| Omnitel Lithuania |
gprs.omnitel.net |
[blank] |
[blank] |
DNS: 194.176.32.129, 195.22.175.1 |
To top
Luxembourg
| Operator |
GPRS APN |
Username |
Password |
Optional Settings |
| LUXGSM |
web.pt.lu |
[blank] |
[blank] |
DNS: 194.154.192.101, 194.154.192.102 |
| VOXmobile |
vox.lu |
|
|
|
| Tango |
internet |
tango |
tango |
- |
To top
Macedonian
| Operator |
GPRS APN |
Username |
Password |
Optional Settings |
| Mobimak |
internet |
internet |
mobimak |
|
To top
Malaysia
| Operator |
GPRS APN |
Username |
Password |
Optional Settings |
| DIGI |
diginet |
[blank] |
[blank] |
DNS: 203.92.128.131, 203.92.128.132 |
| Maxis |
internet.gprs.maxis |
[blank] |
[blank] |
DNS: 202.75.129.101, 10.216.4.21 |
| Timecel |
timenet.com.my |
[blank] |
[blank] |
DNS: 203.121.16.85, 203.121.16.120 |
| TM Touch |
internet |
[blank] |
[blank] |
DNS: 202.188.0.133 |
To top
Mexico
| Operator |
GPRS APN |
Username |
Password |
Optional Settings |
| Telcel |
internet.itelcel.com |
webgprs |
webgprs2002 |
|
To top
Netherlands
| Operator |
GPRS APN |
Username |
Password |
Optional Settings |
| KPN Mobile |
internet |
KPN
or [blank] |
gprs
or [blank] |
DNS: 62.133.126.28, 62.133.126.29 |
| O2 |
internet |
[blank] |
[blank] |
- |
| Telfort |
internet |
[blank] |
[blank] |
- |
| T-Mobile |
internet
or
internet-act |
t-mobile
or
[blank] |
t-mobile
or
[blank] |
DNS: 193.79.237.39, 193.79.242.39 |
| Vodafone (normal) |
web.vodafone.nl |
vodafone |
vodafone |
- |
| Vodafone (business) |
office.vodafone.nl |
vodafone |
vodafone |
- |
To top
New Zealand
| Operator |
GPRS APN |
Username |
Password |
Optional Settings |
| Vodafone |
www.vodafone.net.nz |
|
|
|
To top
Norway
| Operator |
GPRS APN |
Username |
Password |
Optional Settings |
| Telenor Mobil |
internet |
[blank] |
[blank] |
- |
| Netcom |
internet.netcom.no |
[blank] |
[blank] |
DNS: 212.45.118.43, 212.45.118.44 |
To top
Poland
| Operator |
GPRS APN |
Username |
Password |
Optional Settings |
| ERA |
erainternet |
erainternet |
erainternet |
DNS: 213.158.194.1 |
| Idea |
www.idea.pl |
idea |
idea |
DNS: 194.9.223.79, 194.204.159.1 |
| Plus GSM/Polkomtel |
www.plusgsm.pl |
[blank] |
[blank] |
DNS: 212.2.96.51, 212.2.96.52 |
To top
Philippines
| Operator |
GPRS APN |
Username |
Password |
Optional Settings |
| Globe |
www.globe.com.ph |
globe |
globe |
DNS: 203.127.225.10, 203.127.225.11 |
| Smart |
internet |
[blank] |
[blank] |
DNS: 202.57.96.3, 202.57.96.4 |
| Sun Cellular |
minternet |
[blank] |
[blank] |
[blank] |
To top
Portugal
| Operator |
GPRS APN |
Username |
Password |
Optional Settings |
| Optimus |
internet |
[blank] |
[blank] |
DNS: 194.79.69.129 |
| TMN |
internet |
[blank] |
[blank] |
DNS: 194.65.3.20, 194.65.3.21 |
| Vodafone (Telcel) |
internet.vodafone.pt |
[blank] |
[blank] |
DNS: 212.18.160.133, 212.18.160.134 |
To top
Russia
| Operator |
GPRS APN |
Username |
Password |
Optional Settings |
| BeeLine |
internet.beeline.ru |
beeline |
beeline |
DNS: 194.190.195.66, 194.190.192.34 |
| Megafon (NWGSM) |
internet.nw |
[blank] |
[blank] |
- |
| MTS |
internet.mts.ru |
mts |
mts |
DNS: 213.87.0.1, 213.87.1.1 |
| PrimTel |
internet.primtel.ru |
[blank] |
[blank] |
- |
To top
Serbia-Montenegro
| Operator |
GPRS APN |
Username |
Password |
Optional Settings |
| Mobtel Srbija |
internet |
mobtel |
gprs |
DNS: 217.65.192.1 |
| Telekom Srbija |
gprsinternet |
mts |
064 |
DNS: 195.178.38.3 |
To top
Singapore
| Operator |
GPRS APN |
Username |
Password |
Optional Settings |
| M1 |
mobilenet or
sunsurf |
[blank] |
[blank] |
DNS: 202.79.64.21, 202.79.64.26 |
| SingTel |
internet |
[blank] |
[blank] |
DNS: 165.21.100.88, 165.21.83.88 |
| Starhub |
shwapint |
[blank] |
[blank] |
DNS: 203.116.1.78, 203.116.254.150 |
To top
Slovakia
| Operator |
GPRS APN |
Username |
Password |
Optional Settings |
| Eurotel |
internet |
[blank] |
[blank] |
- |
| Orange |
internet |
jusernejm |
pasvord |
- |
To top
Slovenia
| Operator |
GPRS APN |
Username |
Password |
Optional Settings |
| Mobitel |
internet |
[blank] |
[blank] |
DNS: 193.189.160.11, 193.189.160.12 |
| Si.mobil |
internet.si.mobil |
[blank] |
[blank] |
DNS: 80.95.225.230, 80.95.225.231 |
To top
South Africa
| Operator |
GPRS APN |
Username |
Password |
Optional Settings |
| MTN |
myMTN |
|
|
|
| Cell-c |
internet |
Cellcis |
Cellcis |
|
To top
Spain
| Operator |
GPRS APN |
Username |
Password |
Optional Settings |
| Amena |
internet |
CLIENTE |
AMENA |
DNS: 213.143.33.8, 213.143.32.20 |
| Telefonica (Movistar) |
movistar.es |
movistar |
movistar |
DNS: 194.179.001.100, 194.179.001.101 |
| Vodafone (Airtel) |
airtelnet.es |
vodafone |
vodafone |
DNS: 212.73.32.3, 212.73.32.67 |
To top
Sweden
| Operator |
GPRS APN |
Username |
Password |
Optional Settings |
| Telia |
online.telia.se |
[blank] |
[blank] |
- |
| Tele2 |
isplnk1.swip.net |
gprs |
internet |
|
| Vodafone Europolitan |
internet.vodafone.net |
[blank] |
[blank] |
- |
To top
Switzerland
| Operator |
GPRS APN |
Username |
Password |
Optional Settings |
| Orange |
internet |
[blank] |
[blank] |
DNS: 213.55.128.1, 213.55.128.2 |
| Sunrise |
internet |
internet |
internet |
DNS: 212.35.35.35, 212.35.35.5 |
| Swisscom |
gprs.swisscom.ch |
[blank] |
[blank] |
DNS: 164.128.36.34, 164.128.76.39 |
To top
Taiwan
| Operator |
GPRS APN |
Username |
Password |
Optional Settings |
| Chunghwa Telekom |
emome or internet |
[blank] |
[blank] |
DNS: 10.1.1.1 |
| Far EasTone |
fetnet01 |
[blank] |
[blank] |
DNS: 210.241.199.199 |
| KG Telecom |
internet |
[blank] |
[blank] |
- |
| Taiwan Cellular |
internet |
[blank] |
[blank] |
- |
To top
Thailand
| Operator |
GPRS APN |
Username |
Password |
Optional Settings |
| AIS |
internet |
[blank] |
[blank] |
DNS: 202.183.255.20, 202.183.255.21 |
| DTAC |
www.dtac.co.th |
[blank] |
[blank] |
DNS: 203.155.33.1, 203.44.144.33 |
To top
Turkey
| Operator |
GPRS APN |
Username |
Password |
Optional Settings |
| Aria |
aycell |
[user specific] |
[user specific] |
DNS: 212.156.4.1, 212.156.4.4 |
| AVEA |
internet |
|
|
|
| Telsim |
telsim |
telsim |
telsim |
|
To top
UK
| Operator |
GPRS APN |
Username |
Password |
Optional Settings |
| Vodafone UK |
Internet |
web |
web |
- |
| O2 UK (contract) |
mobile.o2.co.uk |
web |
password |
DNS: 193.113.200.200, 193.113.200.201 |
| O2 UK (prepaid) |
payandgo.o2.co.uk |
payandgo |
payandgo |
- |
| Orange UK |
orangeinternet |
[blank] |
[blank] |
DNS: 158.43.192.1, 158.143.128.1 |
| T-Mobile |
general.t-mobile.uk |
user |
mms |
|
| T-Mobile (One2One) |
general.t-mobile.uk |
Username |
one2one |
- |
| Jersey Telecom |
pepper |
[blank] |
[blank] |
DNS: 212.9.0.135, 212.9.0.135 |
To top
Ukraine
| Operator |
GPRS APN |
Username |
Password |
Optional Settings |
| Jeans |
www.jeans.ua |
|
|
|
| UMC |
www.umc.ua |
|
|
|
To top
USA
| Operator |
GPRS APN |
Username |
Password |
Optional Settings |
| AT&T (VPN) |
public |
|
|
|
| AT&T |
proxy |
|
|
Gateway IP: 10.250.250.250 or blank
Port: 9201 or blank |
| Bell Mobility |
|
|
|
Gateway IP: 207.236.197.199
Port: 9203 |
| Cellular One |
cellular1wap |
|
|
Gateway IP: 207.236.197.199
Port: 9203 |
| Cincinnati Bell |
wap.gocbw.com |
cbw |
|
Gateway IP: 216.68.79.199
Port: 9201 |
Cingular
(former AT&T users) |
proxy |
|
|
Gateway IP: 10.250.250.250 or blank
Port: 9201 or blank |
Cingular
(MediaWorks) |
WAP.CINGULAR |
WAP@
CINGULARGPRS
.COM |
CINGULAR1 |
|
| Cingular |
isp.cingular |
ISPDA@
CINGULARGPRS.
COM |
CINGULAR1 |
DNS: 66.209.10.201, 66.209.10.202 |
Nextel/Telus
|
|
|
|
|
| Rogers |
internet.com |
|
|
|
| Sprint - CDMA |
|
|
|
CDMA and not GPRS settings |
| T-Mobile (T-Zone) |
wap.voicestream.com |
[blank] or Your T-MOBILE Username |
[blank] or Your T-MOBILE Password |
|
| T-Mobile (Internet) |
internet2.voicestream.com |
[blank] |
[blank] |
DNS: 216.155.175.105, 216.155.175.106 |
| T-Mobile (VPN) |
internet3.voicestream.com |
[blank] |
[blank] |
DNS: 216.155.175.105, 216.155.175.106 |
To top
The details in this list were sourced from QuickIM
|
