• Built-in web server enables real time remote monitoring of the current consumption of the power strip
• Build-in true RMS current meter
• Easy set up (e.g. the meter can read the IP address directly)
• Secure with SSL support
• Provides audible alarm when the power consumption over the threshold of warning and overload
• Sends email and SNMP traps when the power consumption exceed the trigger value of warning or overload to the PDU
• Supports SNMP and provides MIB for the PDU to be monitored by NMS
• Provides per outlet power protection by the circuit breaker
• Real time individual control of each PDU outlet
• Indicate outlets status with LED
• Supports power on sequence

Model IP-PDU9108-US

• USA model
• Output 8 x NEMA 5-15/20R outlets
• Input 1 x IEC320 C20 inlet
• Enclosed IEC320 C19 to NEMA 5-15P Power Cord 3 Meters long
• Protection 1 x 15 AMP Circuit Breaker
• Nominal Voltage 115V
• Frequency 50/60HZ full range
• For 110-127V
  • Total Max output current for per 4 outlets : 15 Amp (UL derated 12 Amp)
  • Use power IN cable with 15A current rating
  • Use power OUT cable with 150A rating for each power outlet

• Regulatory Approvals
  • UL 60950-1, UL Listed, CSA, cUL Listed,CB by UL

  • CE, EN 55022 Class A, EN 55024,EN 61000-3-2,EN 61000-3-3

  • FCC Part 15 Class A, ICES-003

Model IP-PDU9108-IEC

• European and Australian model
• Output 8 x IEC320 C13 outlets
• Input 1 x IEC320 C20 inlet
• Enclosed IEC320 C19 to C14 Power Cord 3 Meters long
• Protection 1 x 10 AMP Circuit Breaker
• Nominal Voltage 230V
• Frequency 50/60HZ full range
• For 200-240V
  • Total Max output current for per 4 outlets : 10A.
  • Individual Max output current for per outlet : 10A.
  • Use power IN cable with 10A current rating
  • Use power OUT cable with 10A rating for each power outlet

• Regulatory Approvals
  • CE, EN 55022 Class A, EN 55024,EN 61000-3-2,EN 61000-3-3

  • C-Tick AS/NZS CISPR 22: 2006

  • FCC Part 15 Class A, ICES-003

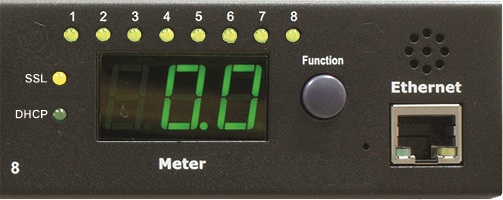

Communication

• SSL Indication Yellow LED
• DHCP Indication Green LED
• Output Status 8 x Green LED
• Network 1 x RJ45 for Ethernet
• Current Meter
  • 3 Digits Seven Segments for True RMS Meter
  • Range: 0A ~ 20 A
  • Resolution: 0.1A
  • Precision: +/-2%+/-0.1AMP



Mechanical

• Temperature 0 ~ 40 Celsius degree
• Humidity 0% ~ 90%
• Size 90 x 432 x 44 mm (1U rack mount)
• Weight 2 kg
